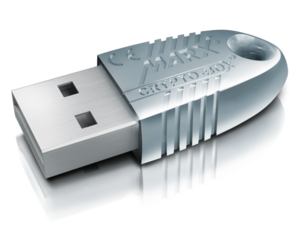

CRYPTO-BOX® XS

USB dongle for software protection and license control for client and extended network solutions. Remote programmable with Remote Update Management System (RUMS). Available in different colors and customer-specific product labeling.

USB software protection with network support

CRYPTO-BOX® XS
  • Network support with one CRYPTO-BOX per network. Individual network license counter configuration for every CRYPTO-BOX USB via License Control System (LCS).

  • Supports the SmarxOS Application Framework, the all-in-one security solution which protects software, data and provides flexible end user management, including remote updates.

  • Remote programmable with Remote Update Management System (RUMS), incl. network license counter reprogramming.

  • The AES/Rijndael algorithm is fully implemented in the USB dongle. RSA support on the driver level for digital signatures and access control systems.

  • Individual serial number for every CRYPTO-BOX XS.

  • Supports operating systems Windows 32/64 bit, MacOS X, Linux 32/64. No drivers needed for Linux and Mac OS.

  • Automatic protection of Windows .EXE or .DLL files or implementation with API into the source code. Libraries and samples for all common compilers such as .NET, Delphi, Java, Qt are included.

  • 4 to 64 kBytes secure memory for licensing information.

  • The extremely short and robust metal case shields electronic circuitry perfectly.

  • Also available in different colors and customized product labeling.

More information about CRYPTO-BOX® XS

CRYPTO-BOX® XS

Logos and Certificates



Comparison Table of the CRYPTO-BOX Variants



CRYPTO-BOX SC
(CBUR2SC)

CRYPTO-BOX XS
(CBUR2XS)

CRYPTO-BOX Versa
(CBUR2VS)

Controller chip 8/16 bit RISC-smartcard processor with USB interface
Controller chip certification EAL4+, WHQL (Microsoft)
Firmware proprietary MARX
Supported operating systems Windows, Linux, Mac OS X, iOS*, Android*
(*network mode)
AES/Rijndael On-Chip
Maximal AES Key Slots 8 (more on request) 3 3
RSA-Support
(6 keys - in hardware)

(1 key - driver level)
Network support
(floating license)

(floating license)

(without license management)
Unique serial number  -
(same serial number for each unit per order)
Memory size (total) 72 kByte, minimum 32 kByte free 4, 32, 64 kByte 4 kByte
Internal memory read/write performance ca. 80 kByte/second ca. 12 kByte/second
User-/administrator password up to 16 kByte in length
Case & LED designer metal case, zinc cast,
LED showing the operating state, eye for key ring;
custom case possible
Connector USB Type A
Memory programming typically up to 1 million cycles: 100,000 guranteed
Data life cycle  minium 10 years
Conformity and certifications CE, FCC, RoHS, USB
Measurements  14 x7 x 32,5 mm / 0.55" x 0.28" x 1.28"
Weight 7,5g / 0.24oz
Temperature range -10°C to + 70°C / 14°F to 158°F
Humidity range 0% up to 95% relative humidity
